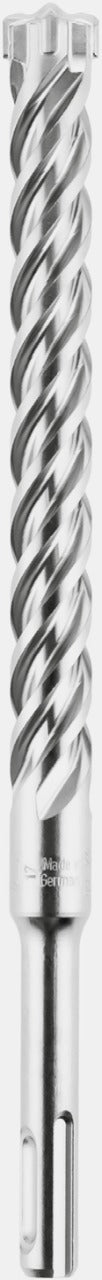

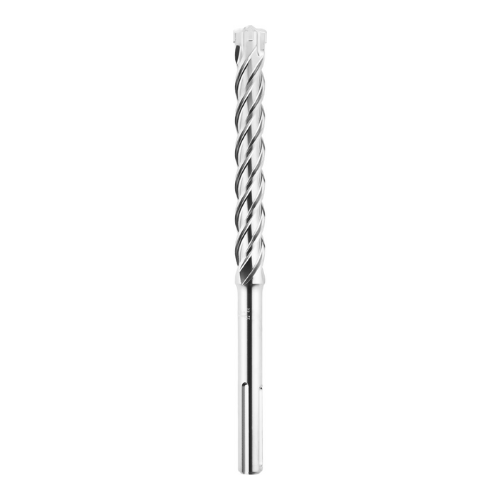

SDS Max Drill Bit

Product Description

5 Crusher
5 Crusher create with impact and
torsion precise holes in concrete and
reinforcement
• Specially designed cutting symmetry
with five Crusher: Equally high, in 90°
angle arranged cutting edges
• Demolition effect for highly effective
destruction
of the material
• Perfect concentricity

Centering point
Robust one-piece carbide plate
(up to Ø 28 mm; from Ø 30 mm
three-piece) with centering point
• Ensures long tool lifetime even in
extreme applications
• Accurate drilling without slipping
of the material

Protection against
reinforcement and wear marks
• Carbide plate with radially formed
protection against reinforcement
prevents jamming when drilling
reinforced concrete
• Wear marks show, whether the tool is
still suitable to drill dowel-compatible
holes
• Short transition from head to flute
ensures fast removal of the drilling
dust

Geometry
• 4-flute geometry
• Very long lifetime due to evenly
spread wear
• Smooth running and optimal
guidance in the borehole
• Low vibration for protection of
man and machine

Field of Application

ReInforced Concrete       Concrete             Masonary           Natural Stone
