Product Description

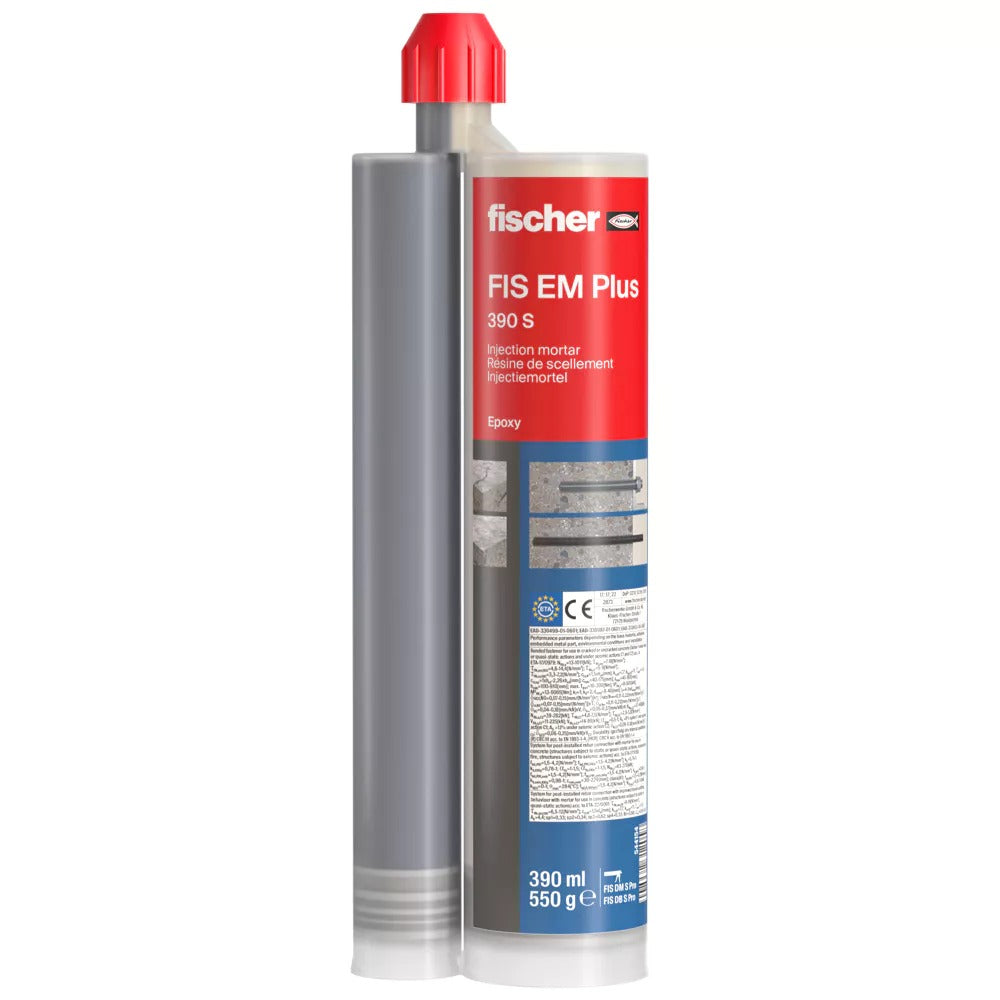

The fischer injection mortar FIS EM Plus is a high-quality epoxy mortar for top load-bearing capacity in cracked and non-cracked concrete and for seismic applications in performance categories C1 and C2. It is suitable for fixations of shear connectors for concrete layers, tall shelvings, and heavy steel constructions both inside and outside. The injection mortar is processed with the approved system components fischer threaded rod FIS A with variable anchorage depths and fischer internal threaded anchor RG M I as well as with reinforcement bars. The epoxy mortar is ideally suited for rebar connections that are installed with a large drill hole diameter and a high anchorage depth. It can also be used for diamond-drilled and water-filled drill holes, as well as for applications under fatigue cyclic loading. The approval of the injection mortar for use in glued laminated or glued solid timber of spruce (Picea abies), fir (Abies alba) or pine (Pinus sylvestris) allows the realisation of high-performance and appealing wood-wood, wood-concrete and wood-steel connections.
Top Features
- FIS EM Plus with optimised formulation for improved load values in cracked and non-cracked concrete.
- The ETA assessment guarantees a service life of 100 years, an external expert report even up to 120 years.
- For rebar connections from diameter 8 to 40 mm.

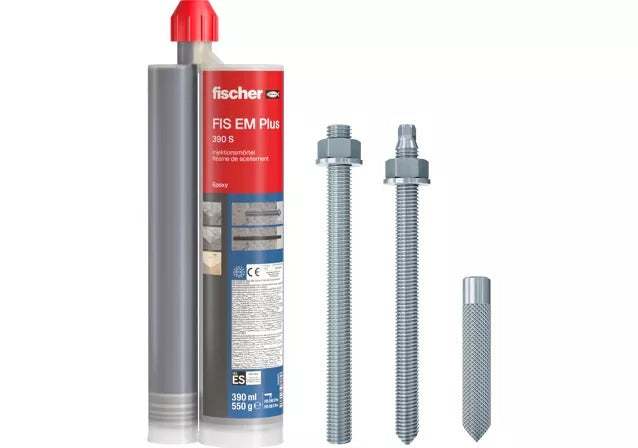

- Can be used with threaded rod FIS A or internal threaded anchor RG M I for temporary and removable fixing points.
- FIS EM Plus is to be processed at temperatures down to -5°C.
- More safety due to approvals for diamond drilled and water-filled drill holes as well as seismic applications of performance categories C1, C2.
Advantages
- The ETA assessment guarantees a service life of 100 years. The expert report of IEA Stuttgart even confirms a working life up to 120 years and thus underlines the reliability and durability of the FIS EM Plus.
- The optimised formulation of the epoxy resin mortar FISEMPlus leads to improved load values in cracked and non-cracked concrete.
- The mortar can be used for rebar connections from diameter 8 to 40, including seismic applications.
- With the threaded rod FISA, the loads to be applied can be designed variably by selecting the anchorage depth.The mortar is approved for diamond drilled and water-filled drillholes as well as seismic applications and thus offers safety under extreme conditions.
- For practical use on the building site, FISEMPlus can be processed at low temperatures down to -5°C.
